Salient Features

• Screen touch & large display – Easy to read.
• Motorized system for application & removal of major load.
• Minor load setting using touch screen.
• On-screen keypad for data entry.
• High–OK–Low indication for hardness value.
• RS-232 port for report generation & printing.
• Error messages for smooth functioning.
• Two modes: Automatic & Manual.
• Standard software with Sr.No, Hardness values & Limits.
• Indenter guided on linear bearings for small jobs.
• Conversion tables available for selected scales.
• Optional statistical analysis software.
• Three different dwell times for material testing.

Available Models

Model : TRS-DS / DO
• Automatic weight selection (thumb wheel)
• Loads 60, 100, 150 kgf

Model : TRB-DS / TRB-DO
• Includes Brinell load 187.5 kgf
• Brinell Microscope 25X

Model : TRB-250-DS / DO
• Additional Brinell loads 187.5 & 250 kgf
• Brinell Microscope 25X

Model : TSM-DS / DO
• Rockwell + Superficial
• Loads: 15, 30, 45, 60, 100, 150 kgf

Technical Specifications

Test Loads	60, 100, 150 (Rockwell) 15, 30, 45 (Superficial)
Initial Load	10 kgf
Max Test Height	285 mm
Depth of Throat	133 mm
Max Depth of Elevating Screw Below Base	230 mm
Overall Dimensions	610 × 240 × 730 mm
Net Weight	100 – 115 kg
Scales Displayed	Rockwell A, B, C, D, E, F, G, K, H, M, P, R, S, V Superficial Scales
Least Count	0.1 Rockwell 0.2 Superficial
Dwell Time	1 to 99 sec selectable
Printer Interface	RS-232 Port
Power Supply	230V, Single Phase, 50Hz

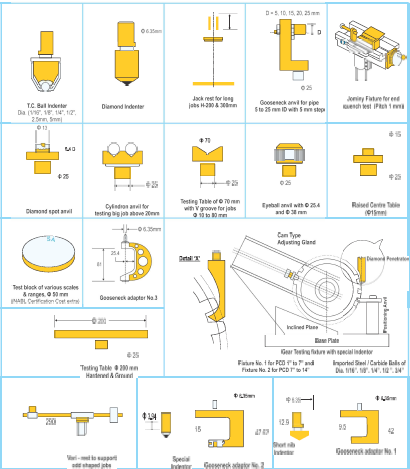

Standard Accessories

Rockwell Diamond Indenter	1 No
Superficial Diamond Indenter	1 No
Testing Table Ø50 mm	1 No
V-Groove Table (Ø6–45 mm)	1 No
Ball Indenter 1/16"	1 No
Ball Indenter 2.5 mm	1 No
Ball Indenter 5 mm	1 No
Test Block HRC	1 No
Test Block HRB	1 No
Test Block Superficial	1 No
Allen Spanners	5 Nos
Clamping Device	1 No
Brinell Microscope 25X	1 No
PVC Cover	1 No
Instruction Manual	1 Book
